Key Features
- 288 x 288 Deck Control
- Fully Scalable
- Up to 72 Interface Cards
- Add Single or Dual Crosspoints
- Full Redundancy
- Removable Fan Tray & Fans
- 18RU
 |

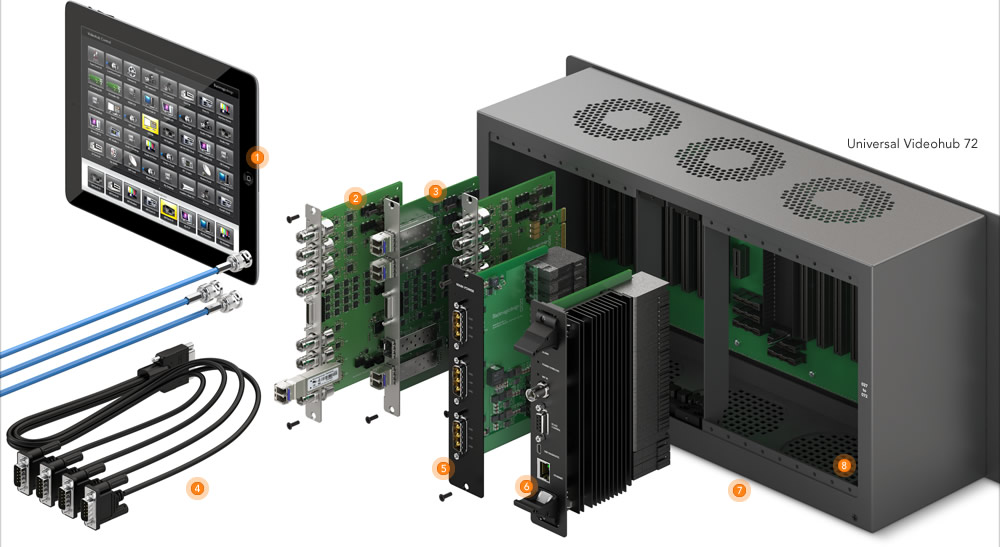

Universal Videohub ControlControl routing directly with a computer, hardware control panel or even an iPad. |
 |

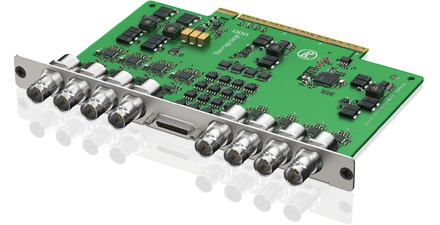

Universal Videohub SDI InterfaceIncludes 4 BNC SDI inputs and 4 BNC SDI outputs on a single interface card. |
 |
Universal Videohub Optical Fiber InterfaceIncludes 4 optical fiber SDI inputs and 4 optical fiber SDI outputs on a single interface card. |
 |
Universal Videohub Deck Control CableAdd 4 independent control ports to any SDI or Optical Fiber Interface card. |
 |
Universal Videohub 450W Power CardAdd up to 3 external 12 volt power bricks. |
 |
Universal Videohub CrosspointSupports up to 72 inputs and 72 outputs. |
 |
Universal Videohub 72Add up to 18 interface cards in a 72 rack frame. |
 |
FansRemovable fan tray with fans that can be easily accessed and replaced. |
Innovative Features
Universal Videohub 72 lets you add up to 18 interface cards, and Universal Videohub 288 up to 72 cards, which is great for broadcast and post facilities with lots of equipment. You can hot swap interface cards while working live without the need to power down the router.
Intelligent Design
Universal Videohub models feature a frame based design with the freedom to build a router to suit your needs. The design also integrates crosspoint and power redundancy and when you need to expand you can use the same interface cards in a larger frame.
Automatic SDI Switching
3 Gb/s SDI connections automatically switch between SD, HD, 4:4:4 and 2K video formats, so you can move the highest quality video between all your editing systems, decks, monitors and more. Simultaneously route copper SDI and optical fiber SDI signals in the same router.
Modular Interface Cards
Each SDI and optical fiber SDI interface card features 4 inputs and 4 outputs, plus a breakout cable port for deck control. The Universal Videohub Deck Control Cable breaks out to 4 separate RS-422 connections. SDI and optical fiber interface cards also support 16 channels of embedded SDI audio, so all the audio channels in your signal are routed together with the video. For maximum flexibility, interface cards are all the same size and fit both Universal Videohub 72 and Universal Videohub 288, which is great if you need to use an alternative frame size in the future.
